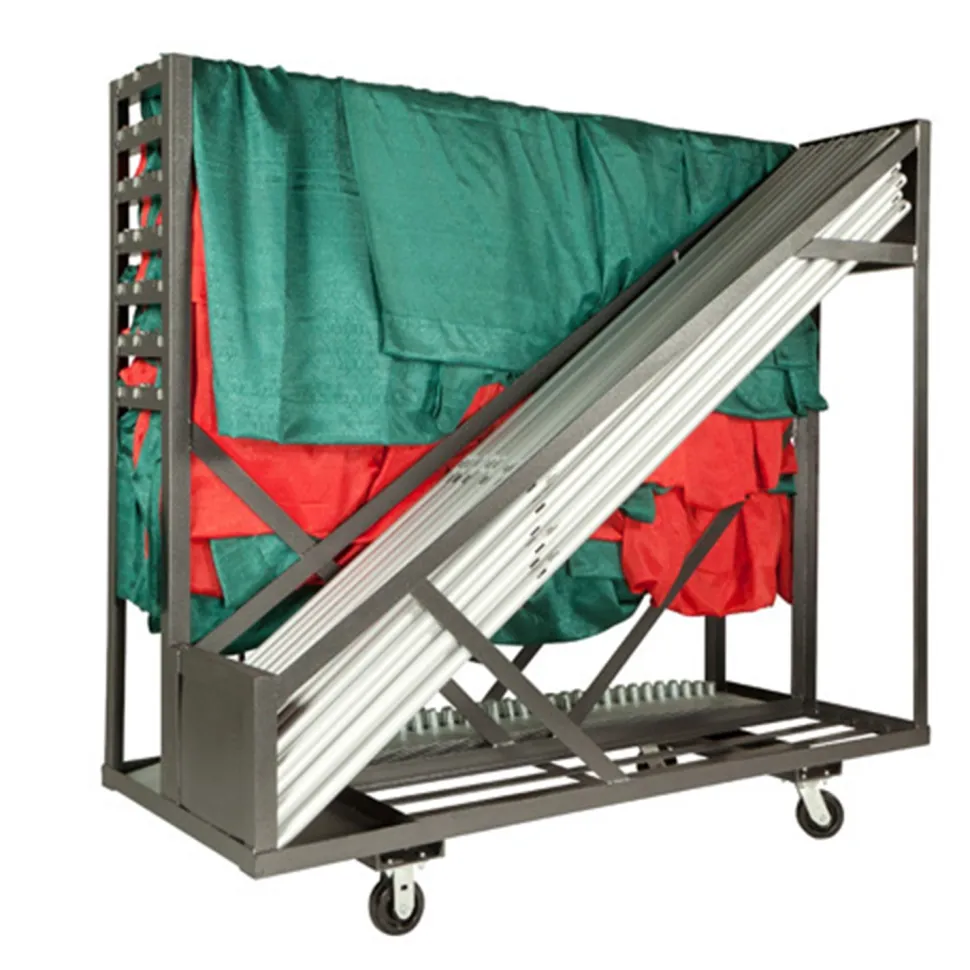

Pipe & Drape “Party Cart” – Holds 280 linear feet of Pipe, Bases, Drape & Crossbars

The Pipe Drape Party Cart (Holds 280 Linear Feet of Pipe, Bases, Drape & Crossbars) is a practical and efficient solution for transporting event equipment. Use this cart for a large trade show setup and moving the equipment incredibly easy. The cart is sturdy and well-constructed, ensuring that it can handle the weight of multiple pipes, bases, drapes, and crossbars without any issues. The design allows for quick and secure loading and unloading.

Due to high demand current production time on all carts is 1-2 weeks. Please note these carts are best for Valu series 1.5″ diameter pipe, primarily used for trade show set ups.

PARTY CART:

Dimensions:
33.5″W x 88″L x 74″H (castors installed)

Weight:
385lbs

Capacity:
280 linear feet of inline back wall: 29 uprights (up to 8’H), 29 bases (any size we carry), 28 drape supports (6′-10′ or 7′-12′) pre-strung with 4 panels of drape per support.
Rated to hold up to 3,600lbs
18″x18″ and 24″x24″ base plates are to be stored on an angle and 15″x15″, 16″x14″ and 8″x14″ can be stored flat.

Materials:
Welded on-site, rugged welded angle iron steel frame

Castors:
6″ Phenolic Resin Castors, 5″H x 2″ W wheel with 1.5″ distance from the top of the plate to top of the wheel, the plate is 4″ x 4.5″
(2) Swivel and (2) rigid
Rated at 900 lbs per castor for a combined rating of at least 3,600 lbs.
*ship separately; must be installed

Finish:
Powder coated, standard finish is Silver Vein but other powder coat colors available upon request

PARTY CART PLUS:

Dimensions:
33.5″W x 88″L x 74″H (castors installed)

Weight:
434lbs

Capacity:
200 linear feet of 10′ x 10′ trade show booths: (21) 8′ uprights (up to 8’H), (21) 3′ uprights, 41 bases (any size we carry), 41 drape supports (6′-10′ or 7′-12′) pre-strung with 4 panels of drape per support.
Rated to 3,600lbs
18″x18″ and 24″x24″ base plates are to be stored on an angle and 15″x15″, 16″x14″ and 8″x14″ can be stored flat.

Materials:
Welded on-site, rugged welded angle iron steel frame

Castors:
6″ Phenolic Resin Castors, 5″H x 2″W wheel with 1.5″ distance from the top of the plate to top of the wheel, the plate is 4″ x 4.5″
(2) Swivel and (2) rigid
Rated at 900 lbs per castor for a combined rating of at least 3,600 lbs.
*ship separately; must be installed

Finish:
Powder coated, standard finish is Silver Vein but other powder coat colors available upon request

This item ships by freight.

Ever tried to carry 280 feet of pipe by hand? Don’t. Let this Pipe Drape Party Cart do all the heavy lifting! It’s like the VIP valet service for your event setup. With room for all your bases, crossbars, and drape hardware, you’ll wonder how you ever threw a party without it. Your back will thank you, your event will be more organized, and who knows, maybe you’ll even feel like a pipe-drape superhero rolling this bad boy around. Put it to work, and you’ll be the master of logistics in no time!
