Checkerboard Style 3D Dance Floor – 20ft x 20ft

Bright LED lights are placed inside the dance floor between two mirrors. The LED lighting bounces from the mirrors, infinity trails of light can be seen from the top of dance floor, creating the amazing 3D effect!

Call us to customize size and pattern.

This 3D LED dance floor is controlled by SD/DMX controller and remote.​

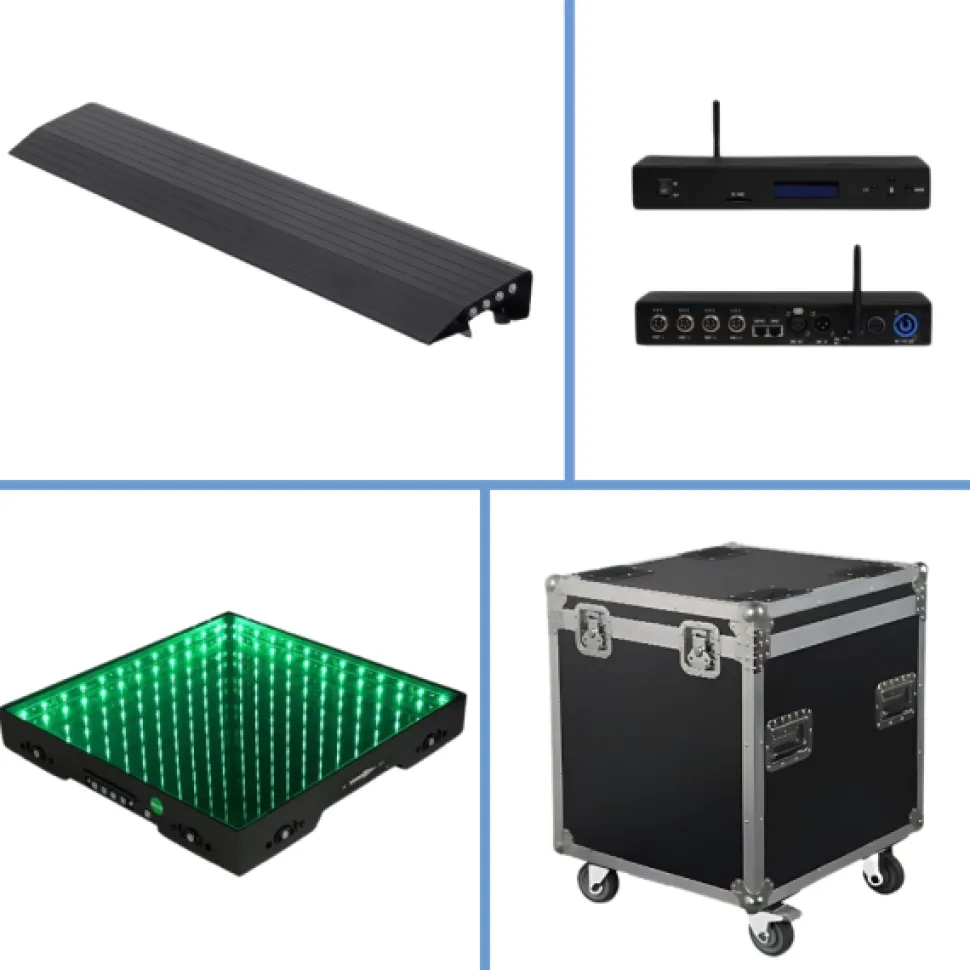

20ft x 20ft Kit Includes (MAGNETIC CONNECTION):

• LED Panels (61cm x 61cm)
• SD Controller/s
• Flight Cases
• Edging (61cm)
• Corner Edging

Specification:

• Voltage: AC90-240V, 50/60Hz
• Power Consumption: 15W
• Light Source: SMD 5050 3IN1
• LED Qty: (pcs/unit) 64pcs RGB3IN1
• Color: RGB mixing
• Pixel Pitch: 28mm
• Control Channel: 30CH
• Control: DMX, master slave, sound activated, auto mode
• Life Span: ≥ 30, 000 hours
• Housing Color: Black
• Surface Cover: Acrylic plate
• Waterproof
• Switch Power Supply: Built-in and auto switching
• Surface Cover: Acrylic 3D Dance Floor
• Material: Aluminum
• IP Rating: IP54
• Certification: CE
• Weight: 25lbs per panel
  ​

Product Advantages:

Material: Acrylic plate cover and aluminum base

• Built for professional use
• Long life
• Can arrange to any size
• Light weight
• Easy to operate
• One year warrenty

This 3D LED Floor offers endless color possibilities to modify your surroundings. With minimized heat production, the LED FLOOR has the flexibility for numerous types of applications such as architectural or retail spaces, stage, productions, night clubs, dance floors, and much more. The combination of Red, Green and Blue LEDs offers a tremendous range of colors with smooth transitions from one color to the next. This unit has 3 operating modes Stand Alone, Master/Slave or DMX Control. With 3 dmx control modes the unit provides flexibility for controlling the color mixing and patterns creations for added creativity.

What is the Dance floor weight capacity?
– About 1,100 lbs per 10 sq ft

Is the power outlet on one side of the dance floor?

– Yes, the cords stick out of the color floors so you can plug one panel into the next. The starlight floors snap into each other very easily. No screws or tools needed.

How do the panels connect to each other?

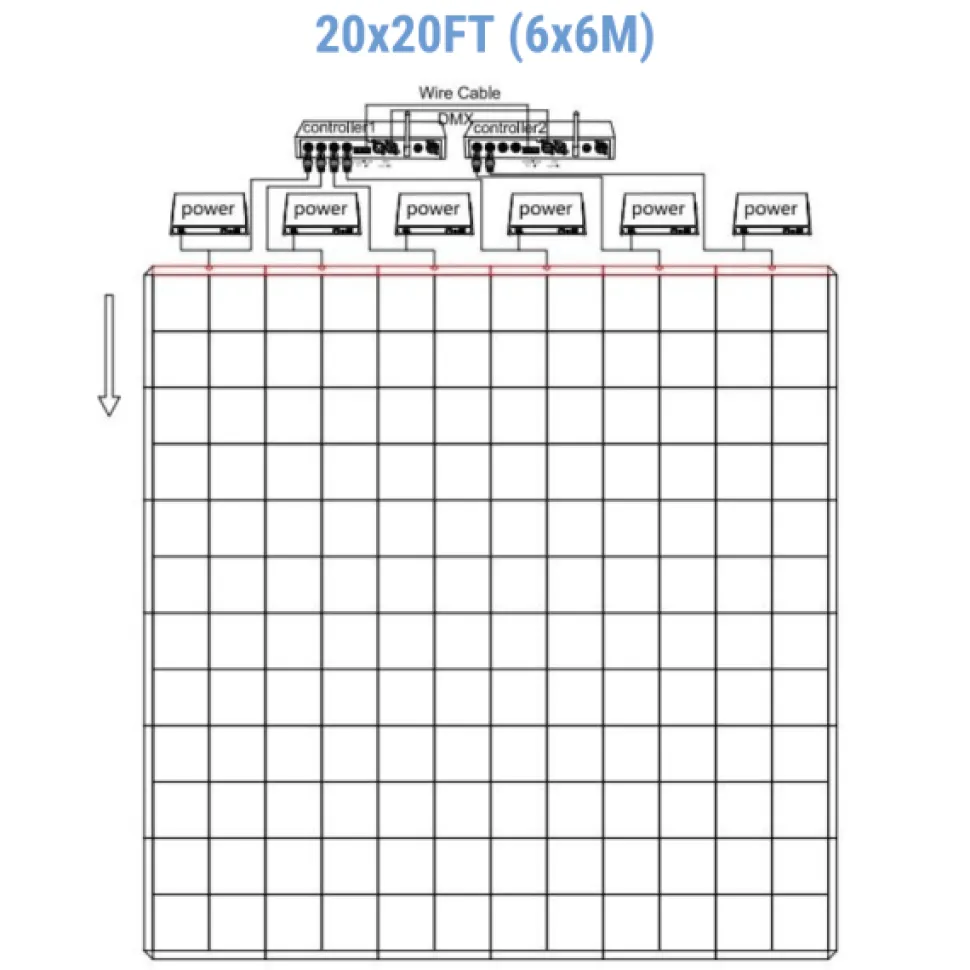

– For Color Floors: there’s a power out & in on every panel. You can daisy chain them together and the 1st one is the one you plug into the power.

What kind of power supply do they have?
– Color dance floors do not have an external power supply – it’s integrated in the floor.

Can it be synced to music?
– Yes

Are they water resistant?
– They are not water resistant and not meant to be left outdoors. However, spills from drinks that land on top of the floors are fine. The controls are recessed under the panels so spilling liquids won’t get into the mechanisms or electronic controls. Leaving them outside in the rain could severely damage them.
